Feature | Specification |
---|---|
Model Number | UTD2102CL+ |
Scope Type | DSO |
Bandwidth | 100MHz |
Channels | 2Ch |
Scope Sample Rate | 500MSa/s |
Memory Depth | 64kpts |
Refresh Rate | 5,000wfms/s |
Vertical Scale @1MΩ | 1V/div to 20V/div |
# Automatic Measurements | 34 |
Included Bus Protocols | None |
Optional Bus Protocols | None |
Logic Pod Included | Not Available |
Signal Generator Function | Not Available |
Frequency Meter | 6-bit |
Display Size (in) | 7in |
Touchscreen | No |
Warranty | 3 years |
Product Dimensions (L x W x H) | 13 in x 4 in x 6 in |
Product Weight | 6 lb |
Certifications | CE/cETLus/UKCA |
Documents | English download guide, multi-language safety manual, calibration report (COC) |

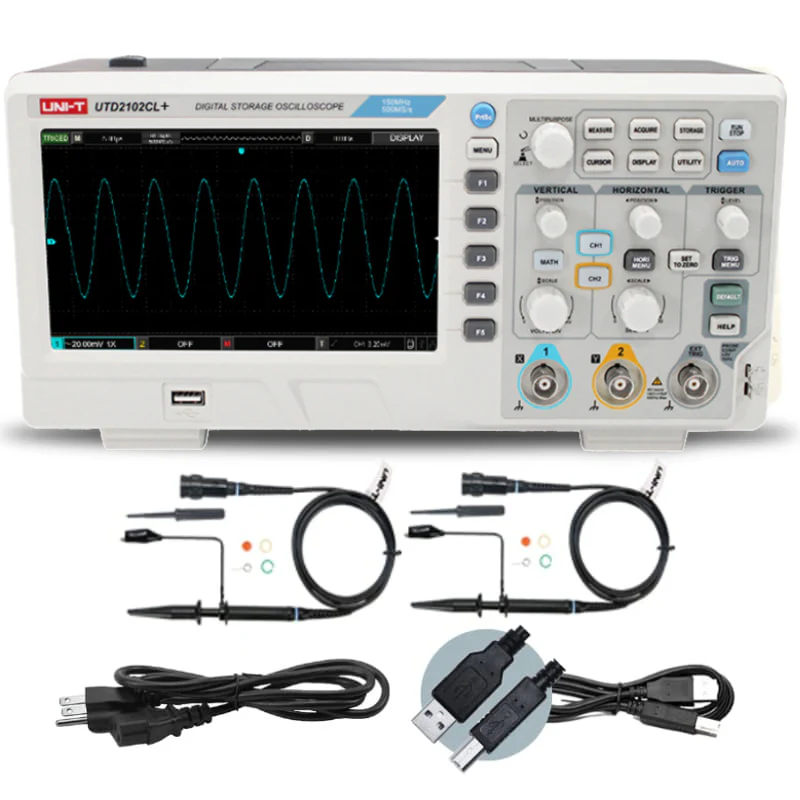

Included Accessories | Oscilloscope probe (UT-P04)*2 |
Standard Accessories | Power cord, USB2.0 printing cable |
