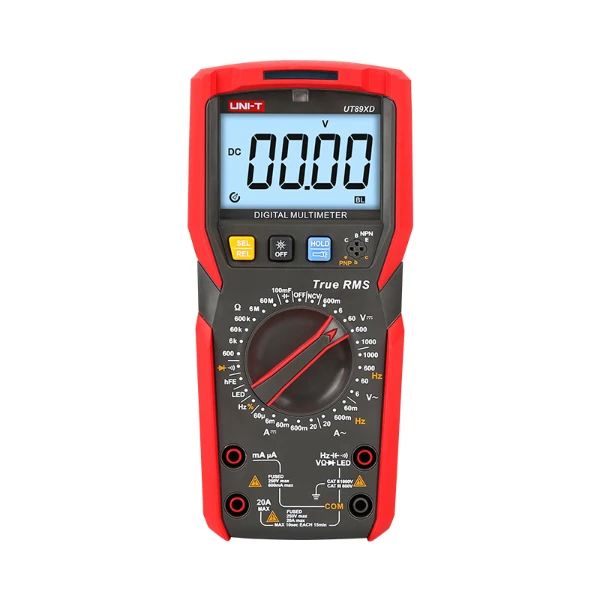

Specifications of UT89X Series Digital Multimeters
| Specifications | Range | UT89XD | |||
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) | |||
| 200mV/2V/20V/200V/1000V | |||||
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) | |||
| 200mV/2V/20V/200V/1000V | |||||
| DC current (A) | 60μA/60mA/600mA/20A | ||||
| 60μA/6mA/60mA/600mA/20A | ±(0.8%+8) | ||||
| 2000μA/200mA/20A | |||||
| AC current (A) | 60mA/600mA/20A | ±(1%+12) | |||
| 2000uA/200mA/20A | |||||
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) | |||
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | |||||
| Capacitance (F) | 100mF | ±(2.5%+20) | |||
| 200mF | |||||
| Conductance (ns) | 200nS | ||||
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) | |||
| 60MHz | |||||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | |||
| Temperature (℃) | -40℃~1000℃ | ||||
| Temperature (℉) | -40℉~1832℉ | ||||
| Live wire test | |||||
| LED test | 12V | ||||
| Audible/visual alarm | V/A/Cap/Diode | LED/hFE/NCV | |||
| Transistor Hfe | √ | ||||
| Dual range NCV test | √ | ||||
| Flashlight | √ | ||||
| MAX/MIN | |||||
| Peak Hold | |||||
| LPF measurement | |||||
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 4 | ||||
| Display | 61mm x 36mm | ||||
| Product net weight | 345g | ||||
| Product size | 189mm x 89mm x 53mm | ||||
| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | ||||
| Standard individual packing | Gift box | ||||
| Standard quantity per carton | 20pcs | ||||
| Standard carton measurement | 450mm x 355mm x 340mm | ||||
| Standard carton gross weight | 12.2kg | ||||
