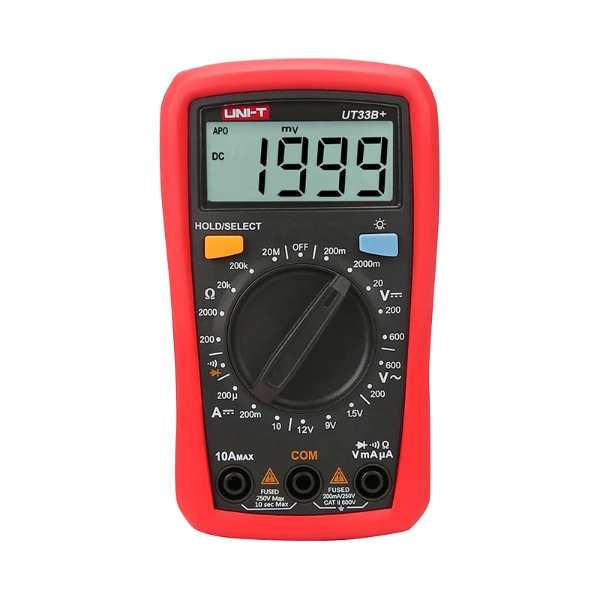

Specifications of UT33+ Series Palm Size Multimeters
| Specifications | Range | UT33B+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 600V | |
| 200V/600V | ±(1.2%+3) | |
| DC current (A) | 10A | |
| 200μA/200mA/10A | ±(1%+2) | |
| 2000μA/20mA/200mA/10A | ||
| AC current (A) | 10A | |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ | |
| 200Ω/2kΩ/20kΩ /200kΩ/20MΩ/200MΩ | ||
| 200Ω/2kΩ/20kΩ /200kΩ/20MΩ | ±(0.8%+2) | |
| Capacitance (F) | 2mF | |
| Temperature | -40℃~1000℃ | |
| -40℉~1832℉ | ||
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Manual | |
| Battery test | 1.5V/9V/12V | |
| NCV | ||
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product color | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads, K-type thermocouple (UT33C+) | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 640mm x 310mm x 350mm | |
| Standard carton gross weight | UT33A+: 18.6kg; UT33B+: 19.4kg; UT33C+: 20.6kg; UT33D+: 19.8kg | |
