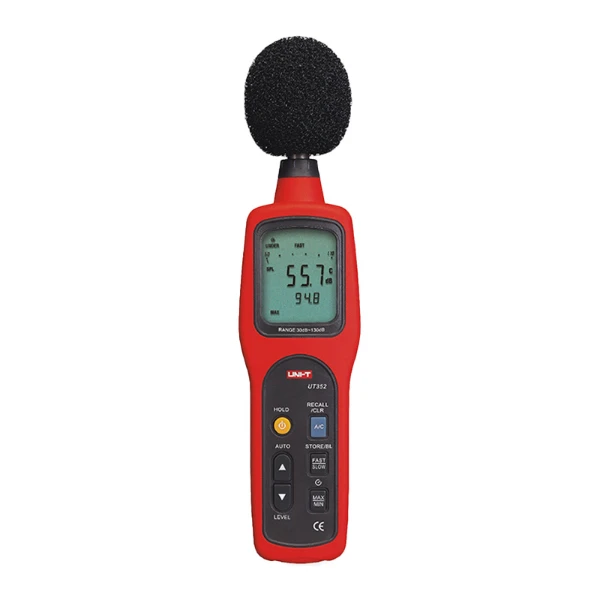

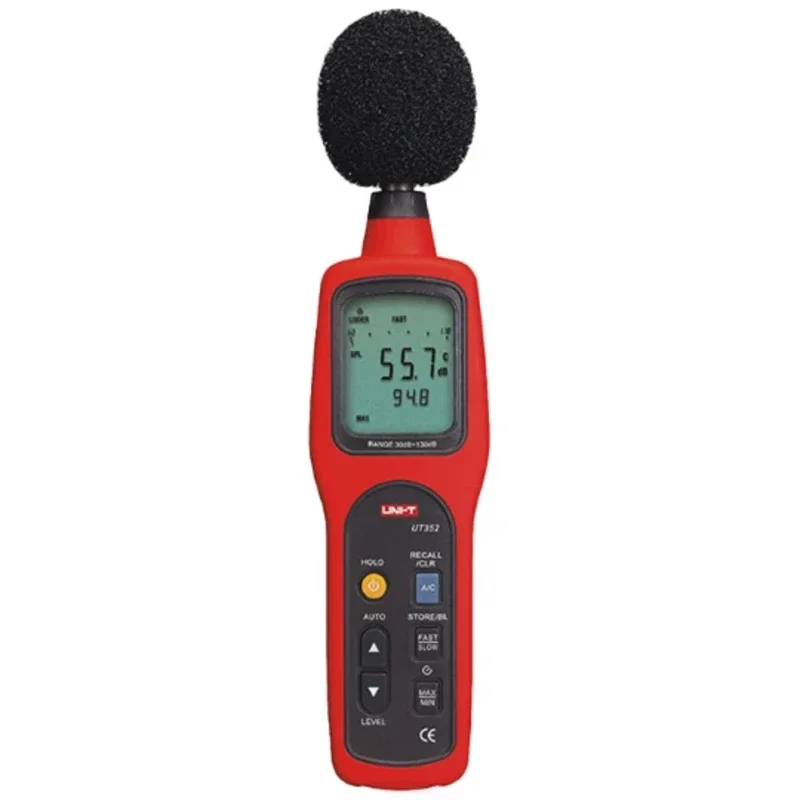

Specifications of UT352 Sound Level Meter
Inhouse product
Specifications of UT352 Sound Level Meter
Specifications | Range | UT352 |
Range | 30~80dB | ±1.5dB |
50~100dB | ±1.5dB | |
60~110dB | ±1.5dB | |
80~130dB | ±1.5dB | |
Frequency | 31.5Hz~8000Hz | √ |
Frequency Weighting | A&C | √ |
Sample Rate | FAST: 8 Times/s | √ |
SLOW: 1 Times/s | √ | |
Features | ||
Analogue Outputs | AC: 0.707Vrms full scale; Output impedance: around 600Ω | √ |
DC:2Vrms full scale; 10mV/dB; Output impedance: around 100Ω | √ | |
Data Hold | √ | |
Auto Power Off | √ | |
Low Battery Indication | ≤4.8V | √ |
MAX Mode | √ | |
MIN Mode | √ | |
Data Logging | 63 | |
High Alarm | Display “OVER” | √ |
Lower Alarm | Display “UNDER” | √ |
LCD Backlight | √ | |
Analogue Bar Graph | 30~130dB | √ |
General Characteristics | ||
Power | 1.5V Batteries (LR6) X 4 | |
LCD Size | 53mm X 41 mm | |
Product Color | Red and Grey | |
Product Net Weight | 330g | |
Product Size | 273mm X 70mm X 39mm | |
Standard Accessories | Batteries, Windscreen, Leather Box | |
Standard Individual Packing | Gift Box, English Manual | |
Standard Quantity Per Carton | 30pcs | |
Standard Carton Measurement | 670mm X 385mm X 300mm (0.077 CBM Per Standard Carton) | |
Standard Carton Gross Weight | 18kg |
