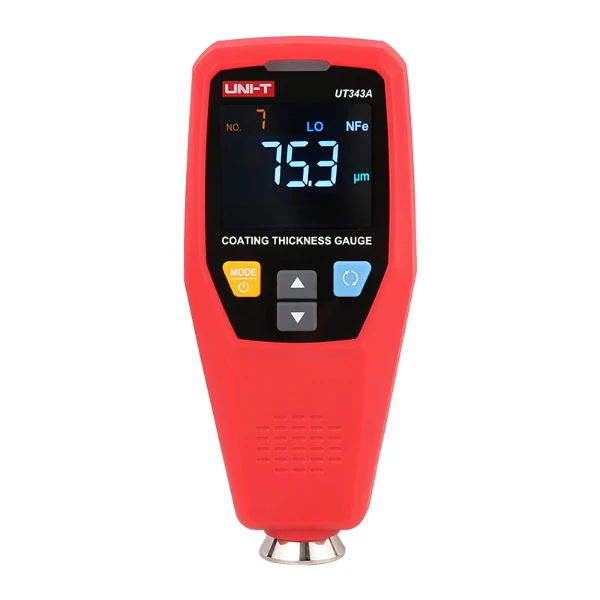

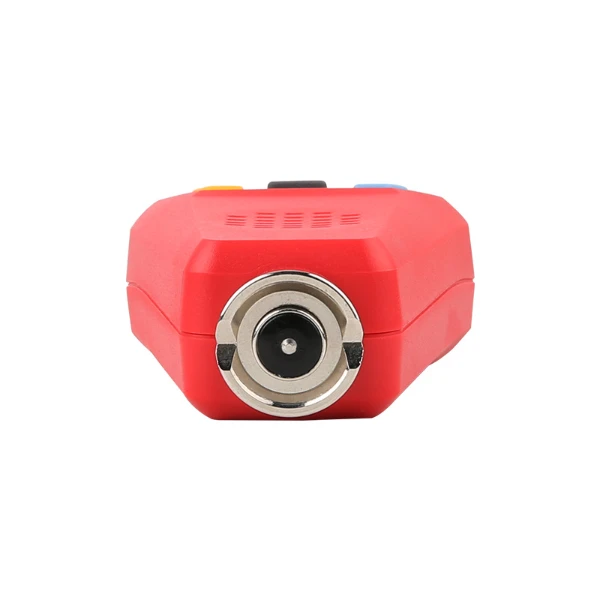

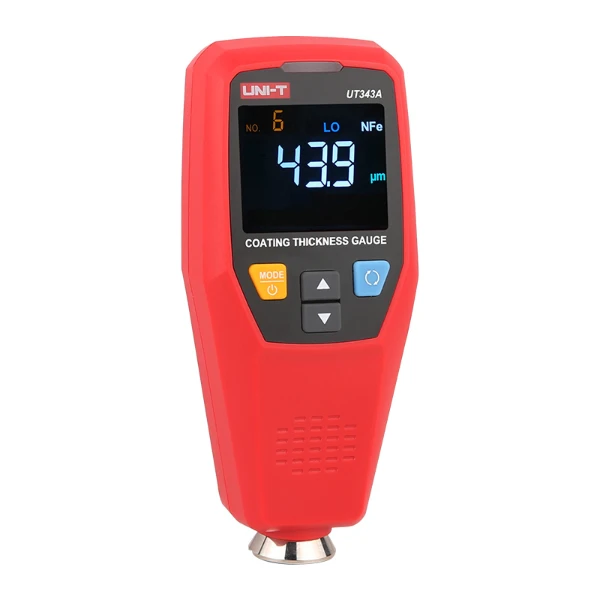

Specifications of UT343A Coating Thickness Gauge
Inhouse product
Specifications of UT343A Coating Thickness Gauge
Specifications | Range | |
Certificates | RoHS | |
Measuring range | 0~1750um | |
Accuracy | ±(3%H+1)um | |
Measurement method | Single/Continuous | |
Measurement mode | Max/Min/Avg | |
Metal type | Ferrous/non-ferrous | |
Features | ||
Display type | EBTN display | |
LCD brightness control | √ | |
Rotatable screen | √ | |
Unit conversion | √ | |
Audio alarm | √ | |
LED alarm | √ | |
Data storage | 199 groups | |
Auto power off | √ | |
Low battery indication | √ | |
General Characteristics | ||
Power | 1.5V battery (LR03) x 2 | |
Product color | Red and grey | |
Product net weight | About 111g | |
Product size | 117mm x 53mm x 37mm | |
Standard accessories | Ferrous substrate, non-ferrous substrate | |
Standard individual packing | Gift box, English manual |
