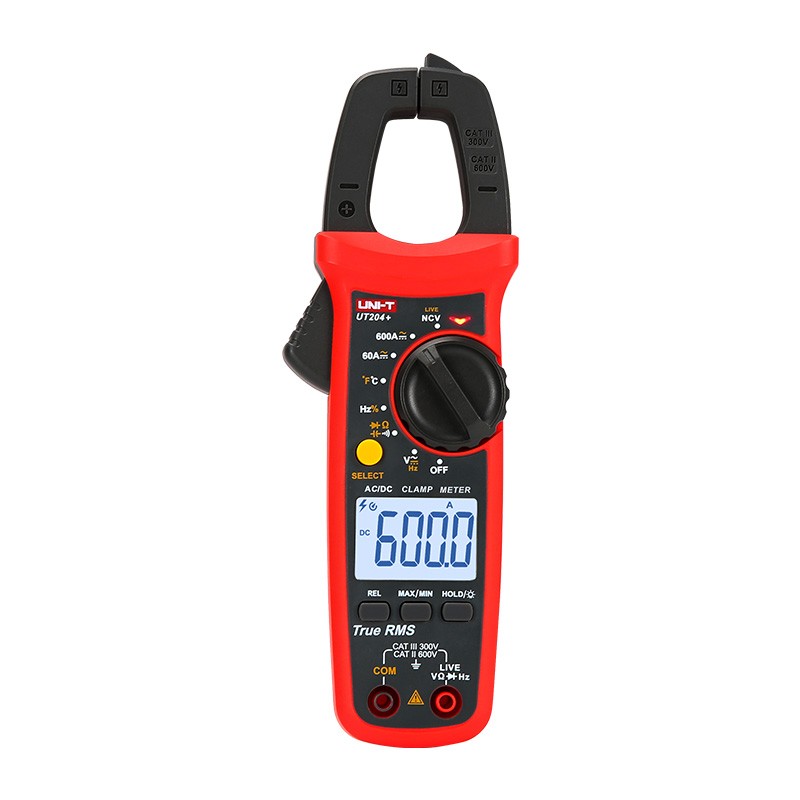

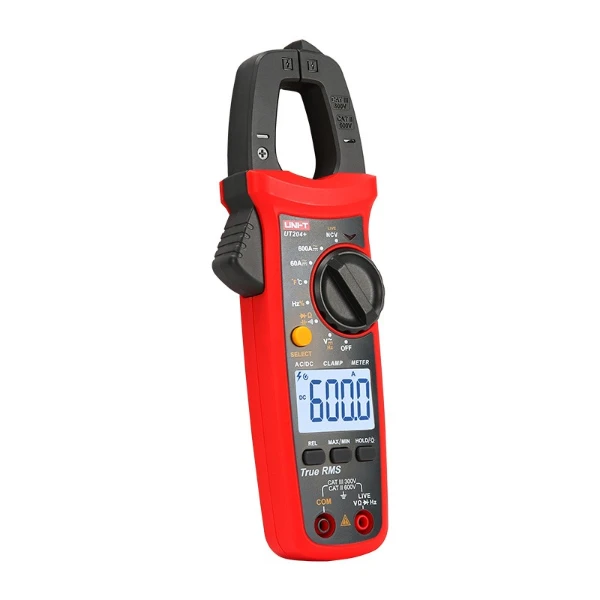

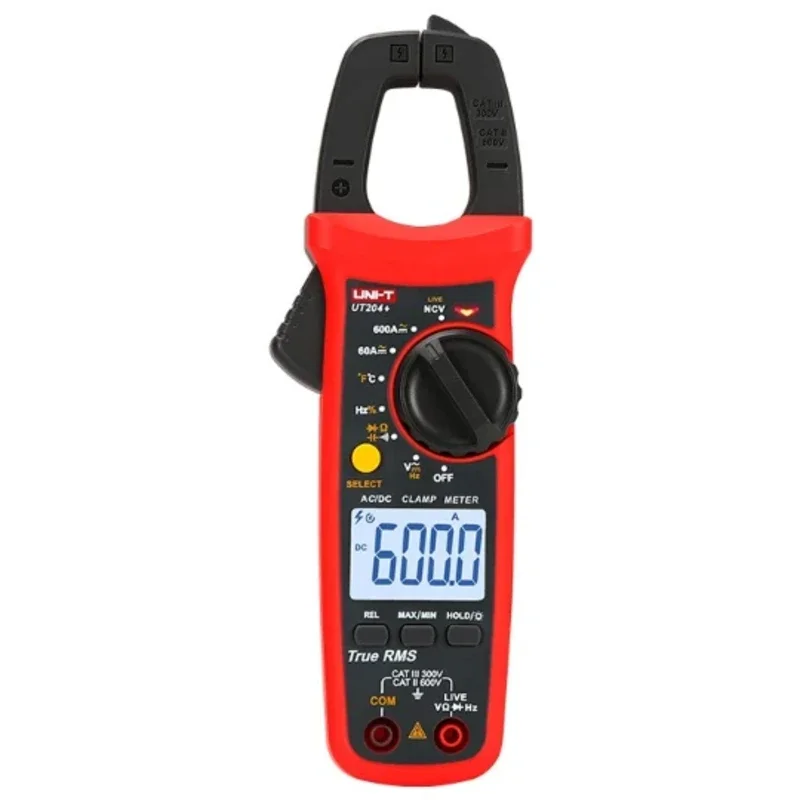

Specifications of UT204+ 400A/600A Digital Clamp Meters
Inhouse product
Specifications of UT204+ 400A/600A Digital Clamp Meters
Specifications | Range | UT204+ | |||
AC current (A) | 400A | ||||
600A | ±(2.5%+5) | ||||
AC current frequency (Hz) | 50Hz~100Hz | ||||
DC current (A) | 400A | ||||
600A | ±(2.5%+5) | ||||
AC voltage (V) | 600V | ±(0.8%+5) | |||
AC voltage frequency(Hz) | 10Hz~10kHz | ||||
10Hz~60kHz | ±(0.5%+2) | ||||
DC voltage (A) | 600V | ±(0.5%+2) | |||
Resistance (Ω) | 40MΩ | ||||
60MΩ | ±(0.8%+2) | ||||
Capacitance (F) | 4mF | ||||
40mF | |||||
60mF | ±(4%+5) | ||||
Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | |||
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | |||
Features | |||||
Display count | 6000 | ||||
Auto range | √ | ||||
Jaw opening | 28mm | ||||
True RMS | √ | ||||
NCV | √ | ||||
Live wire test | √ | ||||
Continuity test | √ | ||||
Diode | √ | ||||
MAX/MIN | √ | ||||
Relative mode | √ | ||||
Zero mode | √ | ||||
Data hold | √ | ||||
Low battery indication | √ | ||||
Auto power off | √ | ||||
General Characteristics | |||||
Power | 1.5V battery (R03) x 2 | ||||
Display | 37mm x 25mm | ||||
Product color | Red and grey | ||||
Product net weight | UT201+/UT202+/UT202A+:248g; UT203+/UT204+:235g | ||||
Product size | 215mm x 63mm x 36mm | ||||
Standard accessories | Batteries, test leads, Themocouple (UT202+/UT204+) | ||||
Standard individual packing | Gift box, Carring bag, English manual | ||||
Standard quantity per carton | 40pcs | ||||
Standard carton measurement | 485mm x 295mm x 385mm | ||||
Standard carton gross weight | UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg |
