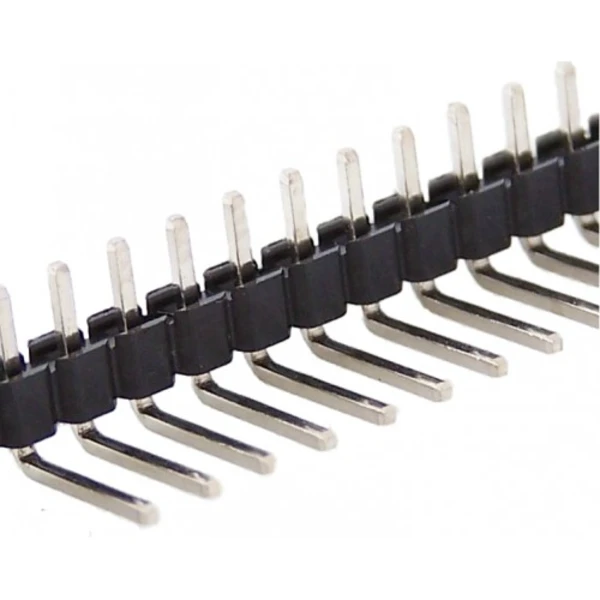

Male Header-0.1" 40-pin DIP Right Angle Single Row is a type of electrical connector widely used in electronics. This type of header features several key characteristics:
0.1 inch: This value refers to the distance between the center of each pin and the center of the adjacent pin. This standard spacing allows this header to be connected to other connectors with the same pin spacing.
40-pin: Indicates that this header contains 40 small copper pins arranged in a single row. These pins are designed to make electrical connections with other electronic circuits.
DIP: Stands for Dual In-line Package, a type of electronic packaging where pins are typically arranged in two parallel rows. In this case, there is only a single row of pins.
Right Angle: Indicates that the pins are bent at a right angle, making it easier to connect wires or other connectors in certain applications.
Single Row: Means that the pins are arranged in a single row, unlike some other types that have two rows.
Product Function
Connection: The primary purpose of this header is to provide electrical connections between different electronic circuits.
Assembly: It is widely used in the assembly of printed circuit boards (PCBs) and electronic device interfaces.
Expansion: It can be used to expand the functionality of electronic devices by adding modules or additional boards.
Common Uses
Computers: In expansion cards, keyboards, mice, and other peripherals.
Electronic Devices: In mobile phones, digital cameras, remote controls, and sensors.
Robotics: In control boards and sensors.
Electronic Projects: Widely used in both small and large electronic projects.
