Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.

Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.

Waterproof and really a great apparatus electronic connector.

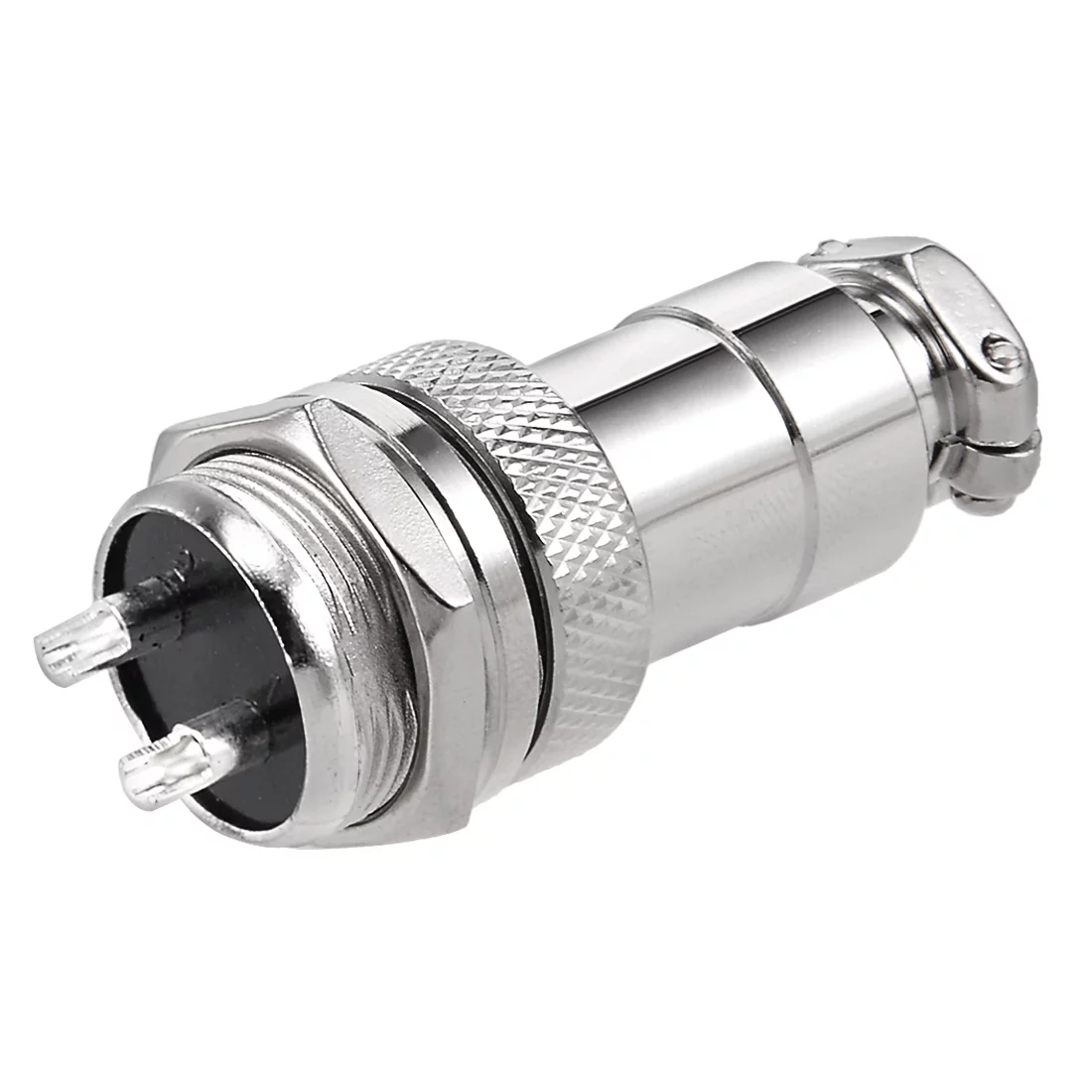

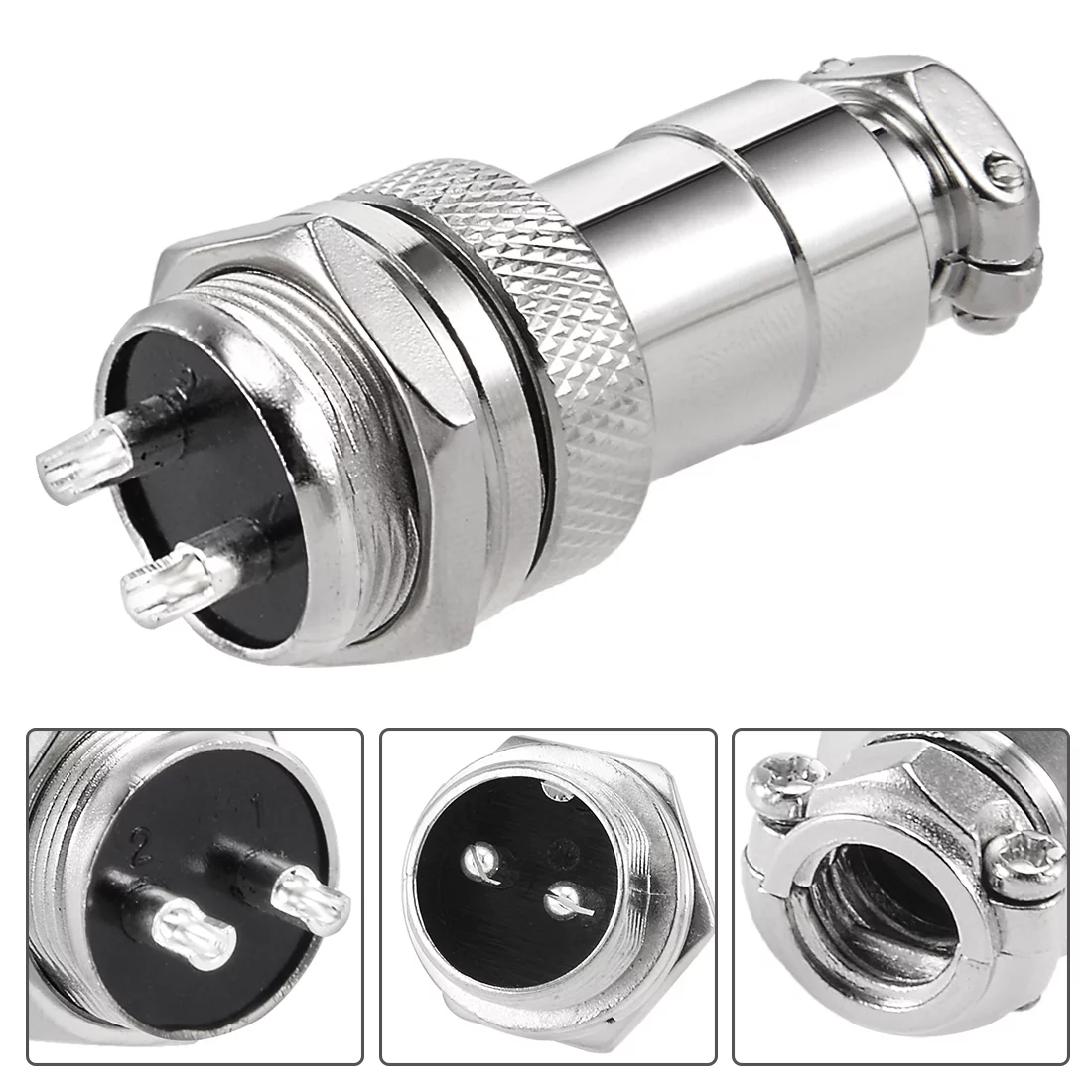

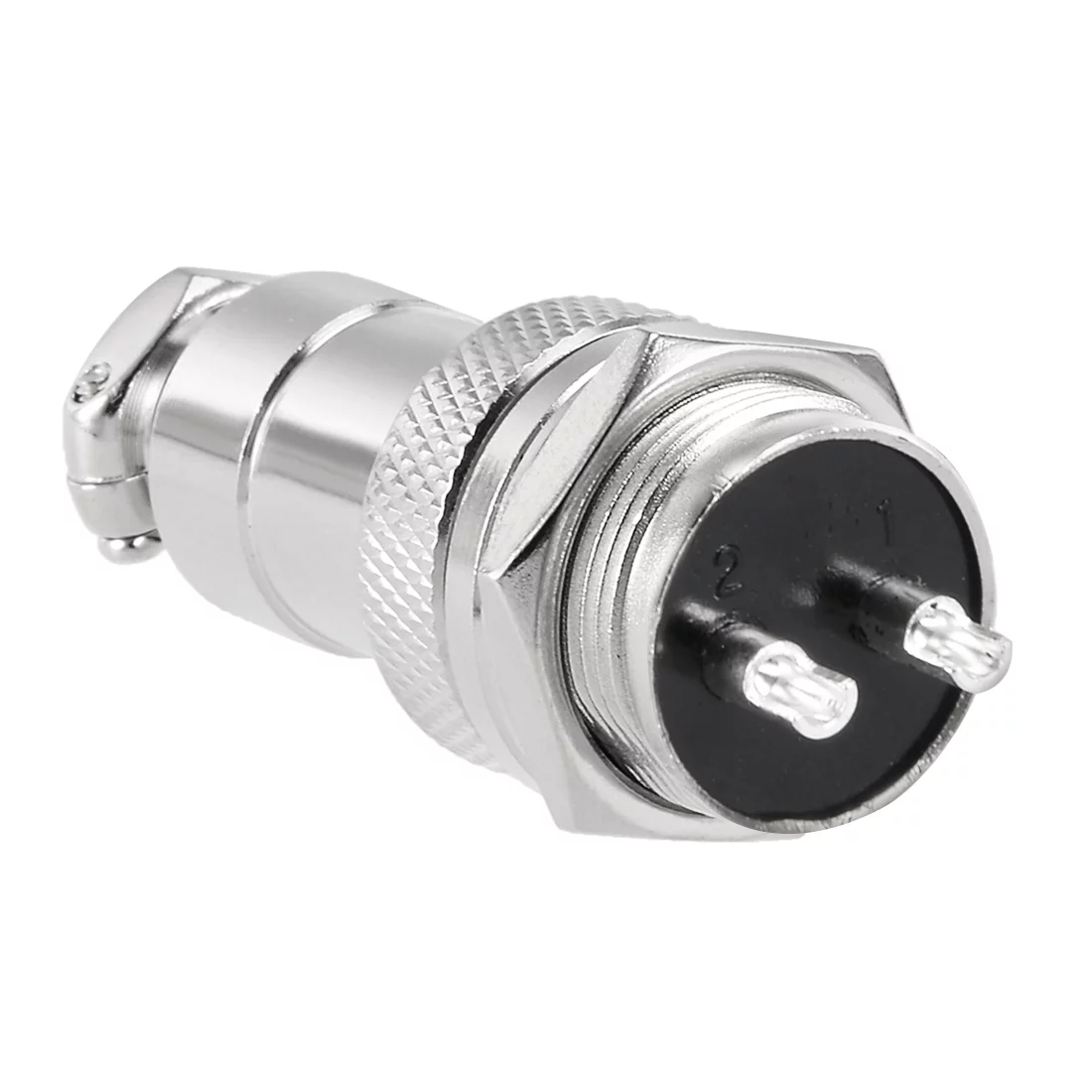

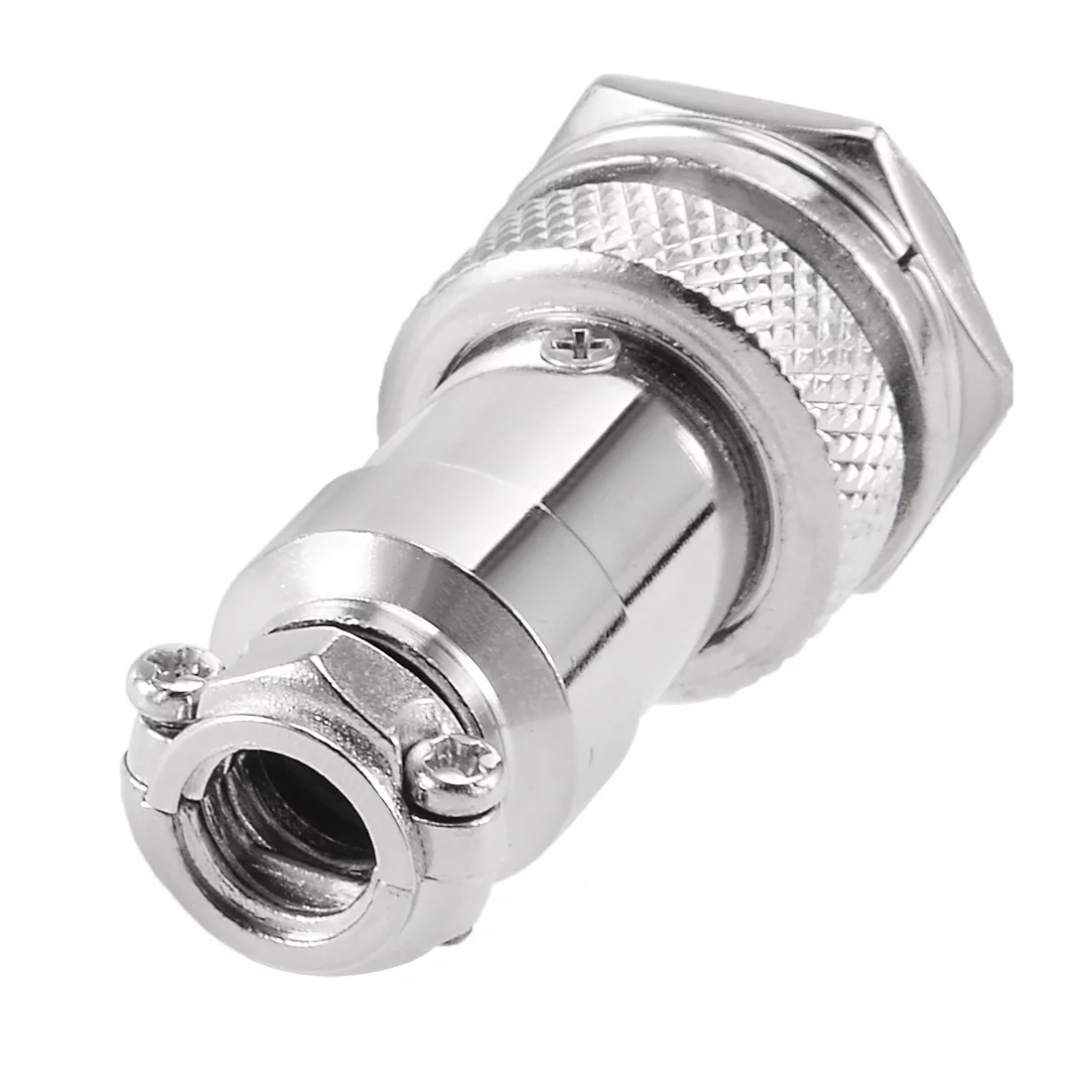

Specificatios:Product Name:  Aviation Connector

Model: GX16-2

Terminal Number: 2 Terminals

Thread Dia: 16mm/0.63inch

Rated Voltage: 125V

Rated Current: 7A

Net Weight:  20g

Coupling: Thread couping

Insert Material: PPS

Shell Material: Zinc alloy with chrome plating

Contact Material: Barss with gold plating

Color: Silver Tone, Black

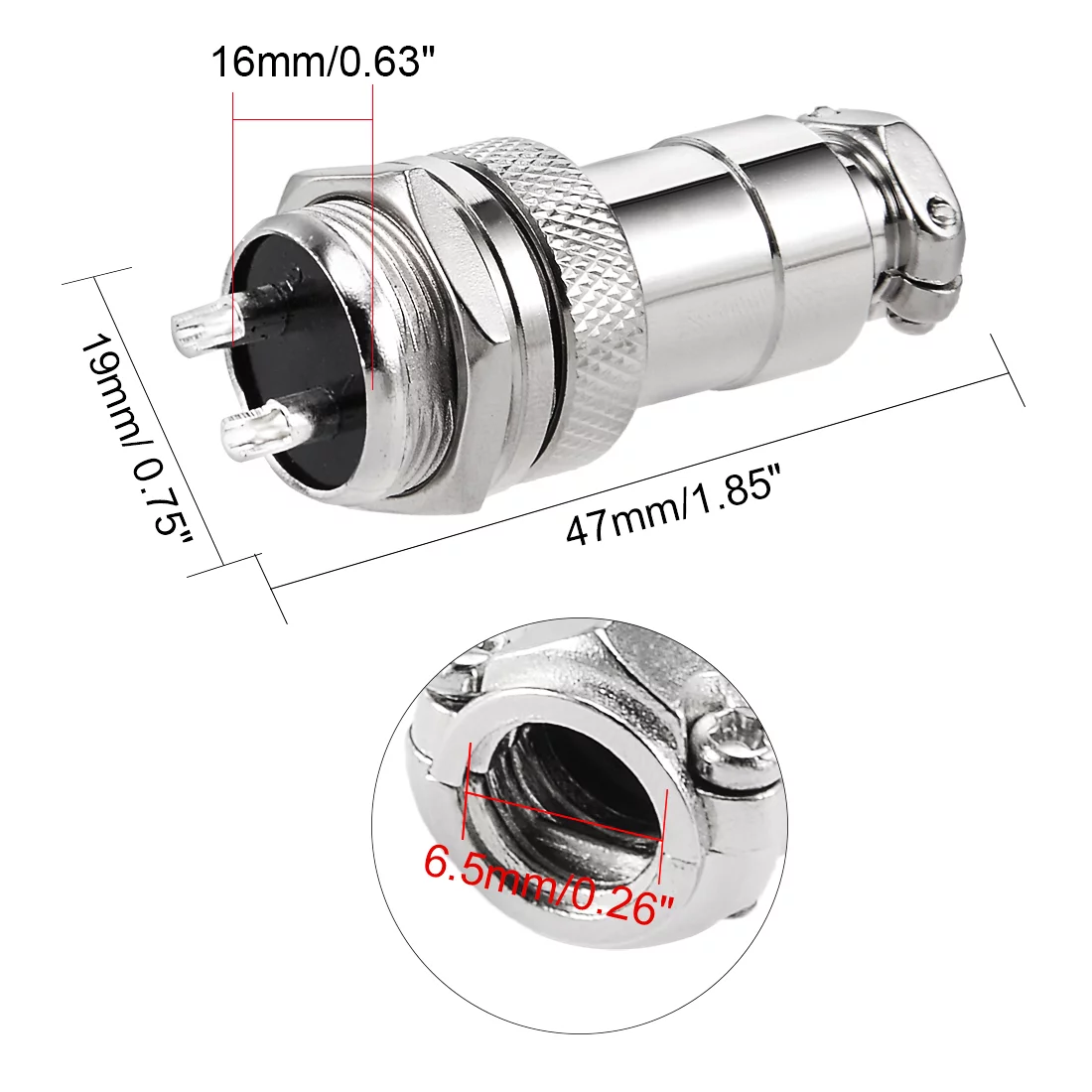

Size (max):  47 x 19mm / 1.85x 0.75inch (L*W)

Terminal Diameter: 2.5mm / 0.1inch

Qualification: CE

Package Include:

Package Content: 1 x Aviation Connecto

Contact Material: copper with silver plating; Net Weight: 20g; Thread Dia: 16mm/0.63"

Color: Silver Tone, Black; Qualification: CE; Model: GX16-2

Size (max): 47 x 19mm / 1.85" x 0.75" (L*W); Terminal Diameter: 2.5mm / 0.1";

Total Size: 1.8" x 0.8"; Wire Hole Diameter: 6.5mm/0.26"
