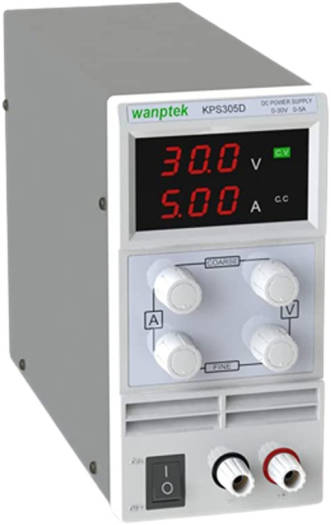

Wanptek KPS305D Precision Variable Adjustable 30V, 5A DC Linear Power Supply Digital Regulated Lab Grade

(0 reviews)
Brand
Other

Inhouse product


Price
245.00SAR /PC
Quantity
Total Price
Inc. Vat
Share

Reviews & Ratings

0.00 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

Basic Info.

Model NO.
KPS305D
Output Type

Output Power
51 - 100W
Input Voltage
Connection Mode
Series Switching Power Supply
Starting Mode
Separate-excited Switching Power Supply
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
Modulation System
Certification
Brand
Wanptek
Output Current
0-5A
Trademark
WANPTEK
Transport Package
Carton Box
Specification
2KG
Origin
Shen Zhen City, Guang Dong Province, China
HS Code
8504401400

Product Description

Product Describe:

KPS303D DC power supply is a single output, high-precision double display DC switching power supply.

The machine has a complete operational protection features, with high performance, low ripple, high stability

and small size and so on.

Current-limit protection protects KPS power supplies and loads from damage.

KPS series power supply with temperature control circuit, intelligent cooling noise low.

Specifications:

Input Voltage: AC 110V,60Hz(US) / 220V,50Hz(EU) (Optional)

Voltage setting switch is at the back.

Output Voltage: 0 ~ 30V

Output Current: 0 ~ 5A (Optional)

Plug Type: US / EU (Optional)

Voltage Resolution: 0.1V

Current Resolution: 0.01A

Ripple Voltage: Vpp≤1%

Power Effect: CV≤1%+10mV

Effect of Load: CV≤1%+10mV

Digital Display: 3 LED Digital Display

Ripple Noise: ≤1 MV

Voltage Display Precision: ±1% + 1 digits

Current Display Precision: ±1% + 2 digits

Operating Environment: -10~45degrees /14~113 Fahrenheit Rh≤90%

Storage Environment: -20~60 degree /-4~140 Fahrenheit Rh≤80%

Item Size: Approx. 80 * 230 * 165mm / 3.1 * 9.1 * 6.5in

Item Weight: Approx. 1448.4g / 51.1oz

Package Size: Approx. 28.5 * 11.5 * 20cm / 11.2 * 4.5 * 7.9in

Package Weight: Approx. 1833g / 64.6oz

Feature:

High-precision, low ripple, small size, light weight

Double LED display of voltage and current, high precision.

Dual voltage input and convenient choice

Tenperature control fan heat dissipation, low noise

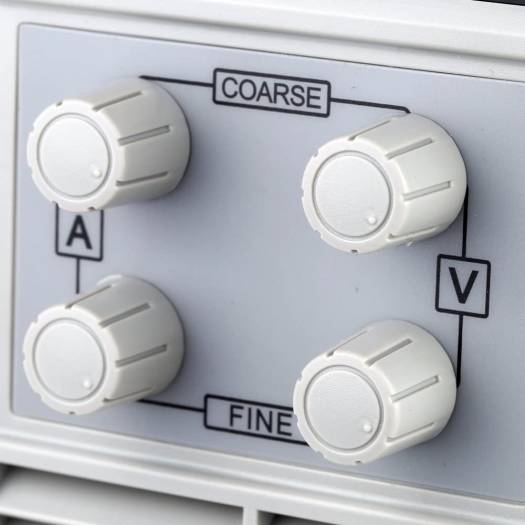

Double potention meter, more adjustment.

Application:

product line test

Electrial maintenance

product anging

battery charging

laboratory, research teaching

Everything else needs a DC regulated power supply

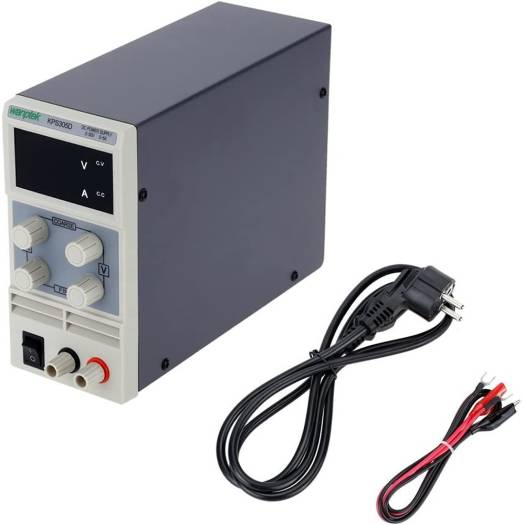

Package Lists:

1 * DC Power Supply
1 * Power Cord

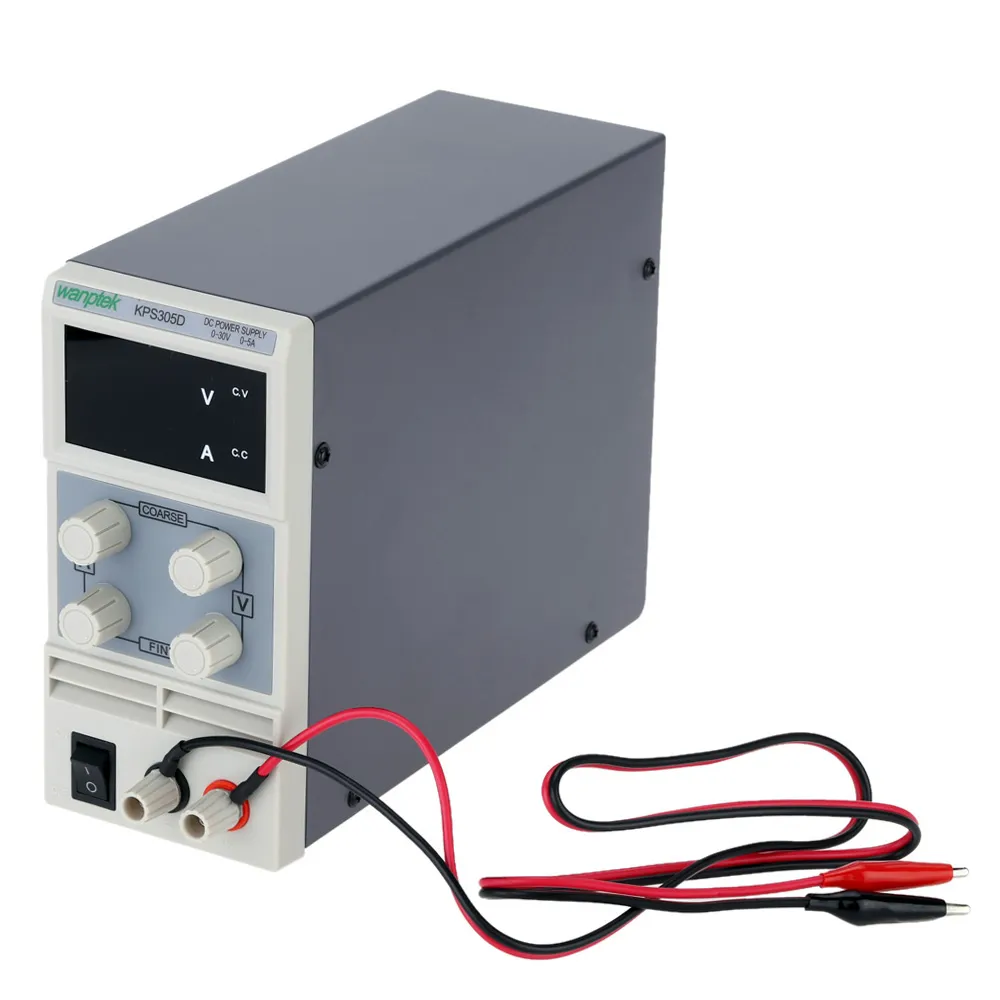

1 * Output Line
1 * Instruction Book
