Number of Phases: 4

Frequency : 100Hz

DC resistance ： 50Ω±7%(25℃)

Idle In-traction Frequency : > 600Hz

Idle Out-traction Frequency : > 1000Hz

In-traction Torque >34.3mN.m(120Hz)

Self-positioning Torque >34.3mN.m

Friction torque : 600-1200 gf.cm

Pull in torque : 300 gf.cm

Insulated resistance >10MΩ(500V)

Insulated electricity power ：600VAC/1mA/1s

Insulation grade ：A

Rise in Temperature <40K(120Hz)

Noise <35dB(120Hz,No load,10cm)

Shaft Diameter: 5.5mm

Dimensions: 28mm x 28mm x 32mm (LxWxH)

Weight: Approximately 35 grams

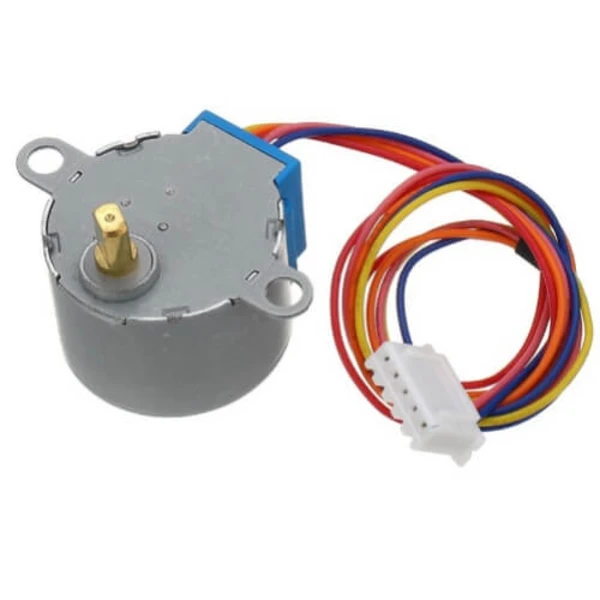

Features of 28BYJ-48 4-Phase 5-Wire Stepper Motor - 5VDC:

Precise Control: The 28BYJ-48 stepper motor provides accurate and controlled rotational movement in small increments, making it ideal for applications requiring precision.

Low Power Consumption: With a rated current of 50mA per phase, it operates efficiently on a 5V power supply.

Compact Design: Its compact size and lightweight design make it suitable for projects with limited space.

Gear Reduction: The built-in 64:1 gear reduction system increases torque while reducing the step angle, resulting in smoother motion.

Compatibility: It can be easily interfaced with microcontrollers like Arduino, Raspberry Pi, and others, making it a popular choice for hobbyists and electronics enthusiasts.

Usage Tip:

Ensure that you provide the motor with a stable 5V power supply and use an appropriate driver circuit to control it. Depending on your application, you may need to consider microstepping to achieve smoother motion.

Caution:

Avoid overloading the motor beyond its holding torque to prevent damage.

Be cautious when connecting and disconnecting wires to prevent short circuits and potential damage to your electronics.
