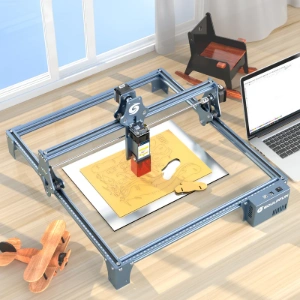

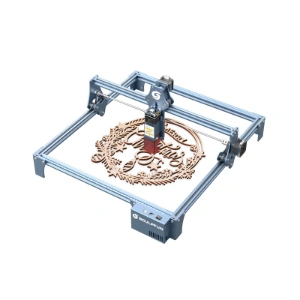

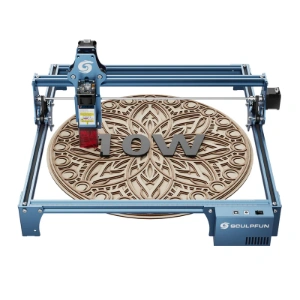

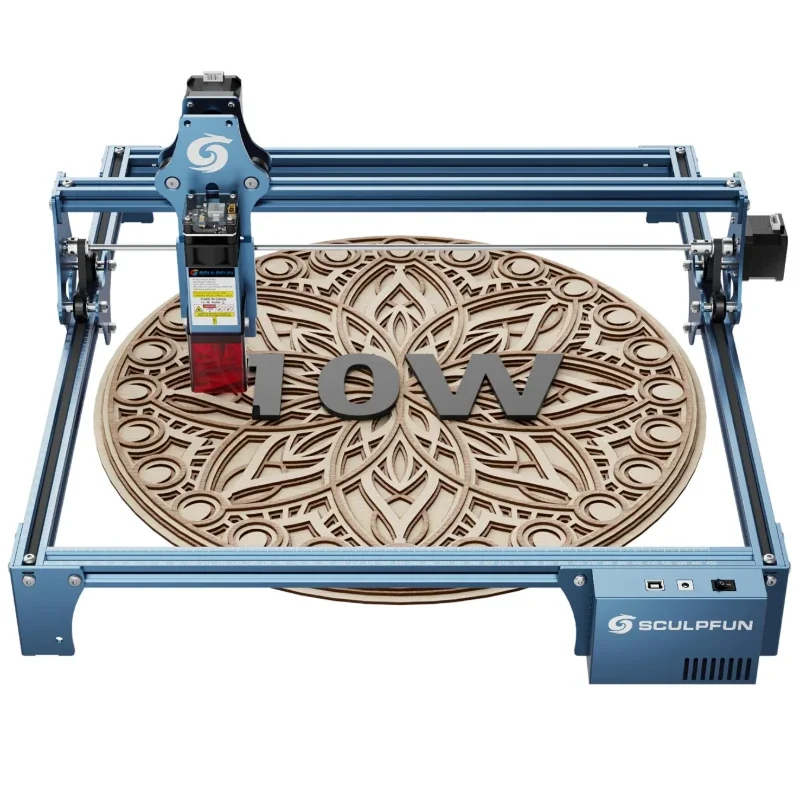

SCULPFUN S9 Pro 10W CNC Laser Engraving & Cutting Machine

The SCULPFUN S9 Pro 10W CNC Laser Engraving & Cutting Machine is a high-performance desktop laser system engineered for precision engraving and cutting. Powered by an advanced 10W diode laser with beam shaping technology, it produces an ultra-fine 0.06mm laser spot, delivering exceptional engraving detail and powerful cutting performance.

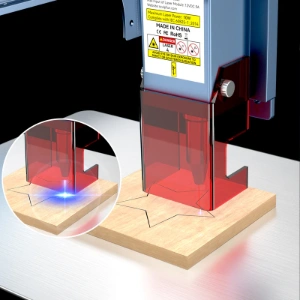

Its durable all-metal frame improves stability and engraving accuracy, while the fixed-focus sliding mechanism allows fast and easy focusing in seconds. The integrated laser shield filters up to 98% of ultraviolet light for enhanced eye protection during operation.

Supporting popular software such as LightBurn and LaserGRBL, the S9 Pro is compatible with both Windows and macOS, making it an ideal solution for makers, educational laboratories, workshops, and small manufacturing businesses.

Specifications:

• Model: SCULPFUN S9 Pro
• Machine Type: CNC Laser Engraving & Cutting Machine
• Laser Type: 10W Diode Laser
• Laser Wavelength: 450 ± 5nm
• Laser Spot Size: 0.06mm
• Engraving Area: 400 × 410 mm
• Engraving Accuracy: 0.01 mm
• Focusing Method: Fixed Focus + Sliding Adjustment
• Data Connection: USB
• Power Supply: AC 100–240V, 50/60Hz
• Output: 12V / 5A
• Machine Weight: 3.0 kg
• Package Weight: 4.77 kg

Supported Engraving Materials:

• Wood
• Paper
• Cardboard
• PCB Boards
• Anodized Aluminum
• 304 Stainless Steel
• Ceramic
• Dark Stone

Supported Cutting Materials:

• Wood (up to 15mm)
• Black Acrylic (up to 10mm)
• Cardboard
• Fabric
• Bamboo

Software Compatibility:

• LightBurn
• LaserGRBL
• Benbox
• GrblController
• LiteFire

Supported File Formats:

JPG, PNG, BMP, SVG, DXF, AI, NC, G-Code

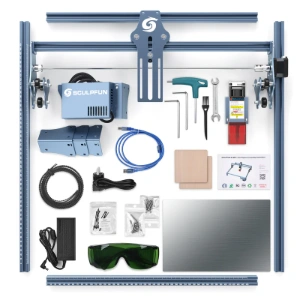

Package Includes:

• SCULPFUN S9 Pro CNC Frame Kit
• 10W Laser Module
• Control Box
• 12V 5A Power Adapter
• USB Cable
• Laser Safety Goggles
• A4 Steel Protection Plate
• Wooden Test Boards
• Tool Kit
• Assembly Accessories
• User Installation Components
