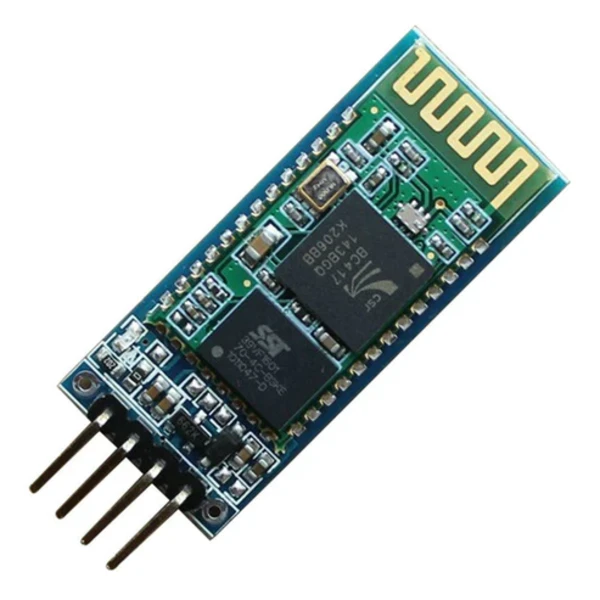

HC-06 Bluetooth Module

The HC-06 Bluetooth Module is a cost-effective solution designed for establishing short-range wireless data communication between two microcontrollers or systems. Using Bluetooth 2.0 communication protocol, it can only function as a slave device. Compared to other methods, it provides more flexibility and can transmit files at a speed of up to 2.1Mb/s, making it the cheapest method for wireless data transmission.

The HC-06 Bluetooth Module uses the frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and enable full-duplex transmission. It operates within the frequency range of 2.402 GHz to 2.480 GHz, allowing for reliable and efficient data transmission.

The HC-06 Bluetooth Module with Base is a Serial port Bluetooth module that has a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation. It comes equipped with a complete 2.4GHz radio transceiver and baseband, utilizing CSR Blue core 04-External single-chip Bluetooth system with CMOS technology and AFH (Adaptive Frequency Hopping Feature). The HC-06 Bluetooth Module with Base also boasts a typical -80dBm sensitivity, making it a highly sensitive and efficient device for wireless data communication.
