Hall Effect Sensor Module

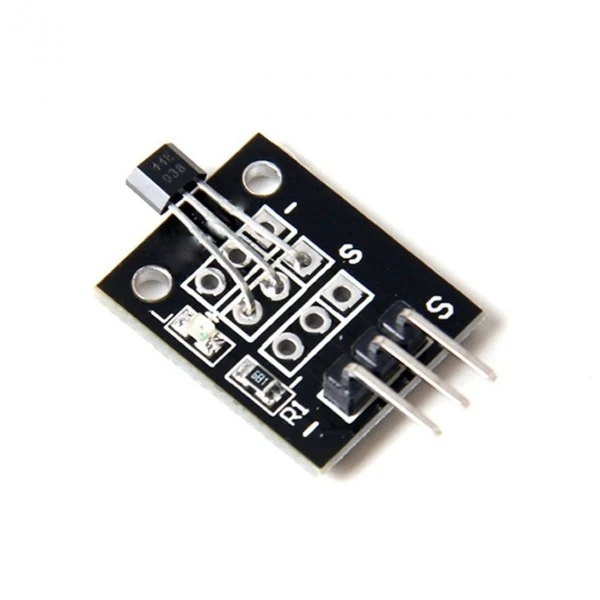

Hall Effect Sensor Module is used to detect the proximity of a magnet. It is very much smaller in size. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the onboard LED indicator.

It's fast (The turn-on threshold is 35-450 Gauss, the minimum hysteresis is 20 Gauss, and the operating voltage range is 4.5 - 24 volts. This module uses the Allegro MicroSystems A3144EUA sensor. It has a 3-pin interface, signal, V+, and GND.

To use this sensor/switch, place a 10K pull-up resistor between the "S" pin and the middle pin (+), and connect the "-" pin to the ground. Supply voltage to the middle pin. The "S" pin will go low (gets pulled to the ground) and the onboard LED indicator will turn on when a magnet is brought near.

Pin Description:

VCC : 2.3 volts to 5.3 Volts

GND : power supply ground

AOUT (analog sensor output) : Arduino/ MCU input

DOUT (digital sensor output) : Arduino/MCU input

Applications:

Motor shaft speed measurement (shaft encoder)

Object position detection

Docking Detection

Door Open and Close Detection

Proximity Sensing

Valve Positioning

Pulse Counting
