Heat Flame Sensor

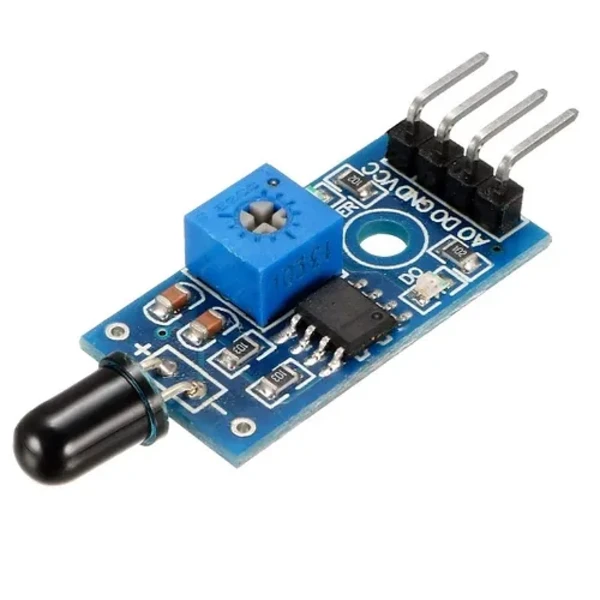

This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible and can use to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detect at a distance of 80 cm. Greater the flame, the farther the test distance. It has a Detect angle of  60° and is very sensitive to flame spectrum.

It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of a blue potentiometer given on the board. Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO.

The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.

Applications

Fire detection

Fire alarm

Fire fighting robot

Drying systems

Industrial gas turbines

Gas-powered cooking devices
