Feature:

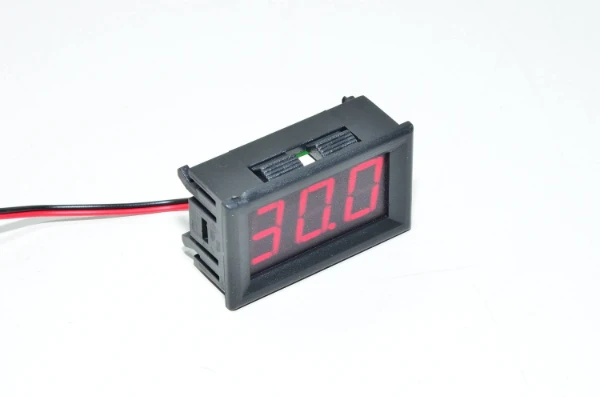

This DC Voltage Meter with DC4.5-30V range. It is easy to read, install and use

And it is self-powered version and supports Reverse polarity protection.

When the voltage is under 10V, there will 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1

No power supply needed

Measure Voltage: DC 4.5-30V two-wire access

Description:

Display: Three digit 0.56" LED, Red/Green/Blue

Refresh Speed: Approx.300mS/time

Highest input:DC 30V (higher than 30v has the risk of burn up)

Minimum input:DC 5V(below than 5V,measurement is inaccurate or does not show)

Minimum Resolution:0.01V(<10V)/0.1V(>10V)

Resolution:1%±1digit

Working Temperature:-20℃~65℃

Size:Approx. 48mm x 29mm x 22mm(L*W*H)

Hole Size: Approx.46*27mm

Current Consumption:<23mA

LED Color: Red color

Quantity: 1pcs
