Description:

1.Onboard Precision Micro Current Transformer

2.High Precision Op-Amp Circuit Board, Do Accurate Sampling For The Signal And Appropriate Compensation, And Other Functions

3.The Module Can Measure Within 5A Current Communication , Corresponding To Output Analog Quantity Can Be Adjusted

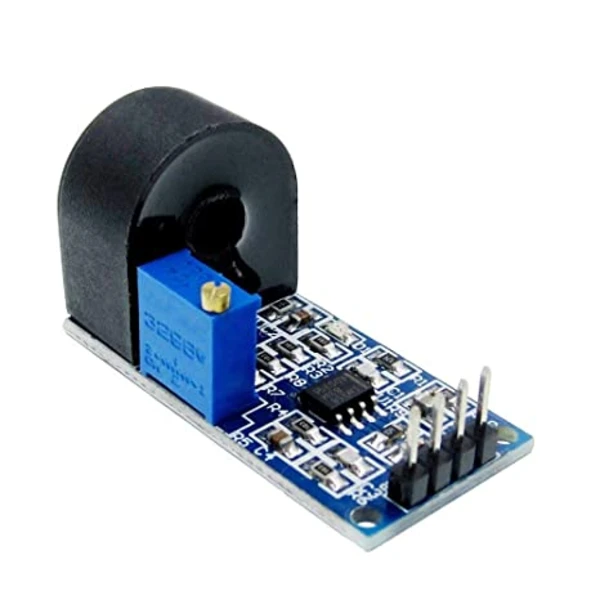

ZMCT103C AC current Sensor

is the best for the purpose of the DIY project and industrial application, where we need to measure the accurate AC current with current transformer. This is an perfect choice to measure the AC current using Arduino/ESP8266/Raspberry Pi like an opensource platform. In many electrical projects, engineer directly deals with measurements with few basic requirements like

High galvanic isolation

High accuracy

Good Consistency

 This module makes it easy to monitor AC mains current upto 5 Amps . ZMCT103 is  a pcb mount current transformer with 1000:1 turns ratio and Dimensions: 28 x 12 x 15 mm(LxWxH).

Applications of ZMCT103C Current Transformer

Metering (electrical energy meters)

AC Voltage measurements

Sensing Overload Current

Ground fault detection

Household electrical equipment

Industrial apparatuses

Electrical testing equipment and relay protection

Analog to digital circuits

Features of ZMCT103 Micro Precision Current Transformers

low price

small size ( 18.3mm x17 mm) and lightweight

Easy PCB mounting

Good consistency

widely acclaimed
